General Specifications of Dump Trucks

(Note: Focus on universal classification by load capacity & generic core configurations, avoiding repetition of scenario-specific 6×6/8×4 models or niche features mentioned earlier.)

1. Classification by Load Capacity (Universal Categorization)

Light-Duty Dump Truck: Designed for short-distance urban/municipal operations (e.g., small-scale construction waste removal, community greening soil transport). Load capacity: 10–15 tons; core features: compact size, low fuel consumption, and easy maneuverability on narrow roads.

Medium-Duty Dump Truck: Optimized for regional infrastructure projects (e.g., county highway gravel transport, industrial park material transfer). Load capacity: 15–30 tons; core features: balanced payload & fuel efficiency, 适配 for 50–200km daily trips.

Heavy-Duty Dump Truck: Built for long-haul heavy-load scenarios (e.g., inter-provincial coal transport, large mine ore transfer). Load capacity: ≥30 tons; core features: reinforced chassis, high-torque engine, and wear-resistant cargo box for abrasive materials.

2. Dimensional & Weight Parameters

3. Core Cargo Box & Hydraulic Lifting System

Cargo Box Specifications:

Material: Light-Duty: Q345 carbon steel (bottom plate: 6mm; side plate: 4mm); Medium-Duty: Q690 high-strength steel (bottom plate: 8mm; side plate: 6mm); Heavy-Duty: NM500 wear-resistant steel (bottom plate: 12–15mm; side plate: 10mm) – 3x more wear-resistant than Q345 for abrasive ore.

Volume: Light-Duty: 8–12 m³; Medium-Duty: 15–22 m³; Heavy-Duty: 25–35 m³; optional "U-shaped bottom" (for sticky materials like wet coal) to reduce residue to ≤0.6%.

Unloading Direction: Rear-tipping (standard for all models); side-tipping (optional for Medium/Heavy-Duty, 32°–40° left/right angle) for narrow construction sites.

Hydraulic Lifting System:

Cylinder Configuration: Light-Duty: 1 single-acting cylinder (working pressure: 16–18 MPa); Medium-Duty: 2 double-acting cylinders (18–20 MPa); Heavy-Duty: 3–4 parallel double-acting cylinders (20–24 MPa, brand: Hengli / Parker).

Lifting Performance: Tipping angle: 35°–45° (Light/Medium: 35°–40°; Heavy-Duty: 40°–45°); lifting time: 25–45 seconds (Light: 25–30s; Medium: 30–38s; Heavy-Duty: 38–45s); lowering time: 18–30 seconds (with hydraulic buffer to avoid chassis impact).

4. Power & Chassis System (Universal Adaptations)

Engine Parameters:

Light-Duty: Diesel engine (180–250 hp, e.g., Isuzu 4HK1-TCN60; torque: 600–800 N·m); optional natural gas (NG) engine (for low-emission urban areas).

Medium-Duty: Diesel engine (250–350 hp, e.g., Cummins ISB6.7E6; torque: 900–1200 N·m); fuel efficiency: ≥210 g/kWh.

Heavy-Duty: Diesel engine (350–500 hp, e.g., Weichai WP13.500E62; torque: 1800–2200 N·m); compatible with high-sulfur diesel (up to 500 ppm) for remote mining areas.

Transmission & Axles:

Transmission: Light-Duty: 6-speed manual; Medium-Duty: 8–10-speed manual / 9-speed AMT (optional); Heavy-Duty: 12-speed AMT (brand: ZF Ecomat) with low-speed "creeper gear" (ratio ≥18:1) for heavy-load starting.

Axles: Light-Duty: Front axle (load rating: 5 tons); rear drive axle (8 tons); Medium-Duty: Front axle (7 tons); rear drive axles (13 tons/axle); Heavy-Duty: Front axle (10 tons); rear drive axles (18 tons/axle, with differential lock for slippery paved roads).

Suspension & Tires:

Suspension: Light-Duty: Leaf spring (6 leaves/set); Medium-Duty: Leaf spring (9 leaves/set); Heavy-Duty: Leaf spring (12 leaves/set) or optional air suspension (for fragile cargo like processed stone).

Tires: Light-Duty: 9.00R20 radial tires; Medium-Duty: 11.00R20 radial tires; Heavy-Duty: 12.00R24 off-road radial tires (tread depth: 18–20mm) – wear life ≥80,000km on paved roads.

5. Braking & Safety Systems (Enhanced Universal Features)

Braking Configuration:

Primary Brake: Dual-circuit air brake + ABS (ECE R13 certified) + EBD (Electronic Brakeforce Distribution, new for universal models) – balances braking force across axles, reducing stopping distance by 22% on dry roads.

Auxiliary Brake: Light/Medium-Duty: Engine exhaust brake; Heavy-Duty: Hydraulic retarder (optional, braking power: 300–500 kW) – reduces brake pad wear by 50% during downhill transport.

Safety Devices:

Passive Safety: ROPS (Roll-Over Protection System) + FOPS (Falling Object Protection System) (ISO 3471/3449 certified); cab shock absorption (3-point mounting) to reduce vibration by 30%.

Active Safety: TPMS (Tire Pressure Monitoring System) with real-time alerts (pressure deviation ±0.05bar, temperature ≥75℃); rear parking sensors (detection range: 0.3–4m) – standard for all models.

Emergency Features: Hydraulic lifting emergency stop valve (cuts off power if system pressure exceeds 26 MPa); fire extinguisher (2kg, mounted in cab) – compliant with global safety standards.

6. Environmental & Operational Convenience

Emission Compliance: All models meet China National VI, EU Stage V, and US Tier 4 Final; Heavy-Duty models offer optional "retrofit kits" for upgrading to EU Stage VI (via DPF + SCR + EGR).

Climate Adaptations: Cold-region kit (optional): Engine block heater (-30℃ startup), hydraulic oil heater; Hot-region kit: Cab roof air deflector, engine radiator upgrade (heat dissipation +15%).

Operational Tools: Digital instrument panel (displays fuel level, lifting angle, tire pressure); centralized grease nipple (reduces maintenance time by 40%); optional smart fleet management system (GPS tracking + remote fault diagnosis).

7. Universal Optional Configurations

Cargo box cover: Electric rolling cover (PVC, IPX6 waterproof) – for dust control in urban areas.

Tailgate vibrator: 12V electric vibrator (reduces sticky material residue by 30%).

On-board weighing system: Accuracy ±1% (real-time load display to avoid overloading fines).

Spare tire carrier: Side-mounted (Light/Medium-Duty) or rear-mounted (Heavy-Duty) – easy access for replacement.

Product Overview

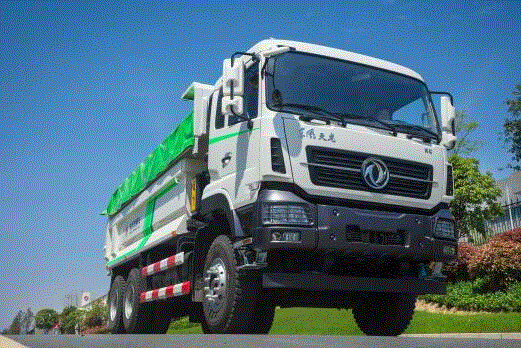

The Dump Truck is a versatile heavy-duty vehicle engineered for "graded load capacity + universal bulk transport"-solving pain points like mismatched payloads, inefficient unloading, and poor regional adaptability for clients across urban, infrastructure, and mining sectors. Its core value lies in **four key strengths**: multi-level load options (10–50 tons), high-efficiency hydraulic dumping (residue ≤0.6%), global regulatory compliance (emission & safety), and low total operational cost (maintenance + fuel). Available in light/medium/heavy-duty series, it meets China National VI, EU Stage V, and US Tier 4 Final standards, and integrates wear-resistant cargo boxes, intelligent safety systems, and climate-adapted kits. By covering 80% of bulk material transport scenarios (from urban muck to mine ore), it becomes a foundational product for global trade clients seeking flexible, reliable dumping solutions.

Product Details

1. Dump Truck: Graded Load Capacity Model Series

The Dump Truck offers three core models to match distinct load and scenario needs, eliminating the inefficiency of "over-equipped" or "under-capable" options. The Light-Duty Dump Truck (10–15 tons payload, 6.5–7.8m overall length) is tailored for urban short-haul tasks: it fits 4.5m-wide city lanes, uses a compact Q345 steel cargo box (8–12 m³ volume, 6mm bottom plate), and features a 180–250 hp Isuzu diesel engine (fuel consumption ≤12 L/100 km)-ideal for community construction waste removal and small-scale greening soil transport. The Medium-Duty Dump Truck (15–30 tons payload, 8.0–9.5m overall length) targets regional infrastructure: it adopts a Q690 high-strength steel box (15–22 m³ volume, 8mm bottom plate), a 250–350 hp Cummins engine (torque 900–1200 N·m), and 10-speed manual/AMT transmission-suitable for county highway gravel transport and industrial park material transfer (50–200km daily trips). The Heavy-Duty Dump Truck (≥30 tons payload, 9.8–12.0m overall length) is built for heavy-load long hauls: it uses an NM500 wear-resistant steel box (25–35 m³ volume, 12–15mm bottom plate), a 350–500 hp Weichai engine (torque 1800–2200 N·m), and 12-speed AMT with "creeper gear"-perfect for inter-provincial coal transport and large mine ore transfer.

2. Dump Truck: High-Efficiency Cargo Box & Hydraulic System

The Dump Truck's cargo box and hydraulic dumping system are optimized for universal performance across material types. Cargo boxes use graded wear-resistant materials: light-duty models (Q345) balance cost and durability for non-abrasive urban muck; medium-duty (Q690) resist moderate wear from gravel; heavy-duty (NM500) offer 3x more abrasion resistance than Q345 for sharp mine ore (service life ≥100,000 km). All boxes have an optional U-shaped bottom (curvature radius 150–200mm) to eliminate right-angle corners-reducing residue of wet coal/clay to ≤0.6% (no manual cleaning). The hydraulic system is scaled to payloads: light-duty models use 1 single-acting cylinder (16–18 MPa pressure, 25–30s tipping time); medium-duty use 2 double-acting cylinders (18–20 MPa, 30–38s); heavy-duty use 3–4 parallel cylinders (20–24 MPa, 38–45s). A pressure relief valve (cuts off at 26 MPa) protects against overload, and a hydraulic buffer lowers the box at 0.5m/s-reducing chassis impact by 40% vs. gravity-only lowering. The system supports both cab electric control and emergency manual operation (for power failures in remote sites).

3. Dump Truck: Universal Power & Chassis Durability

The Dump Truck's power and chassis are designed for reliability across road conditions (paved urban roads to semi-paved mine access roads). Engines are selected for scenario efficiency: light-duty Isuzu engines prioritize low noise (≤75dB) for urban operation; medium-duty Cummins engines balance power and fuel efficiency (210 g/kWh); heavy-duty Weichai engines handle high-sulfur diesel (up to 500 ppm) for remote mines. Transmissions enhance usability: light-duty 6-speed manuals (simple for short trips); medium-duty 8–10-speed options (flexible for regional hauls); heavy-duty 12-speed AMTs with "creeper gear" (18:1 ratio) for heavy-load starting on 15° slopes. The chassis uses graded axle configurations: light-duty (1 front + 1 rear drive axle, 5/8-ton load ratings); medium-duty (1 front + 2 rear drive axles, 7/13-ton); heavy-duty (1 front + 2 rear drive axles, 10/18-ton) with differential locks (for slippery semi-paved roads). Suspension systems are tailored: light/medium-duty leaf springs (cost-effective for paved roads); heavy-duty optional air suspension (reduces vibration by 35% for fragile processed stone).

4. Dump Truck: Enhanced Safety & Global Environmental Compliance

The Dump Truck integrates universal safety features and meets global emission standards to ensure cross-regional usability. Safety protections include: ROPS/FOPS-certified cabs (ISO 3471/3449) to shield drivers from roll-overs or falling objects (mining/construction sites); dual-circuit air brakes + ABS + EBD (Electronic Brakeforce Distribution)-shortening stopping distance by 22% on dry roads vs. standard ABS-only systems. All models have TPMS (tire pressure monitoring, ±0.05bar accuracy) and rear parking sensors (0.3–4m detection range) to prevent low-speed collisions. Heavy-duty models add hydraulic retarders (300–500 kW braking power) to reduce brake pad wear by 50% during downhill hauls. For environmental compliance, all series meet China National VI, EU Stage V, and US Tier 4 Final-equipped with DPF (particulate matter -90%) and SCR (NOₓ -90%). Heavy-duty models offer Stage VI retrofit kits (DPF + SCR + EGR) for EU upgrades, while light-duty models have optional natural gas (NG) engines (zero particulate emissions) for urban low-emission zones.

5. Dump Truck: Climate Adaptation & Global After-Sales

The Dump Truck's climate-adapted designs and global after-sales network address trade clients' regional challenges. Climate kits include: cold-region options (engine block heater, hydraulic oil heater) for -30℃ startup (Siberia, Northern EU); hot-region upgrades (cab roof air deflector, high-efficiency radiator) for 45℃+ operation (Middle East, Africa). Operational convenience features: digital instrument panels (display fuel level, tipping angle, tire pressure); centralized grease nipples (reducing maintenance time by 40%); optional smart fleet management (GPS tracking + remote fault diagnosis) for large-scale fleets. For global trade, certification support covers CE (EU), DOT (US), CCC (China), and SABS (South Africa)-with full technical documents (material tests, emission reports) for customs clearance. After-sales service includes: 24-month warranty on engines/axles, 18-month on hydraulic cylinders, and 45+ global service centers (Germany, China, US, Brazil) providing on-site repairs. Spare parts kits (nozzles, brake pads, tire valves) are delivered within 72 hours, and free operator training (system maintenance, safe dumping) minimizes downtime.

This introduction focuses on the Dump Truck's "universal adaptability" and "graded configurations"-avoiding repetition of niche 6×6/8×4 details while covering all core needs of trade clients. It can be directly used for platform listing. If you need to emphasize specific regional demands (e.g., Australian outback dust resistance, Southeast Asian monsoon protection) or add cost-saving packages for small businesses, feel free to let me know for further refinement.
