Semi Trailer
The company is approved by the NationaI Development and Reform Commission of the automobile, trailer production enterprises, its enterpr ises have been listed in the National Development and Reform Comm is- sion "Announcement", and won the China Quality certification Center "CCC" certification enterpr ises,mainly engaged in the production of modified vehicles, semi-trailers, special vehicles, parts manufacturing,sales and technology development, The company'S own research AND DEVELOPMENT OF THE "LIGHT KING" high STRENGTH SERIES of special vehicles with its light weight,high strength characteristics sell well all over the country. and get customerspraise.
Why Choose Us
High Quality
Company has the first- -class standard and strong product ion capacity of flow process production tooling equipment,the use of advanced production technology and high quality raw materials and spare parts,with reliable quality assurance system, the maximum to meet user needs, Sincerely provide users with advanced, high quality series of special trailers.
Production Market
More than 2000 vehicles are sold domestically and exported to Russia, the Middle East, Australia, Central Asia, Southeast Asia, Africa, and other regions, providing more transportation solutions. We silently move forward
Advanced Equipment
Automatic longitudinal beam submerged arc welding line, advanced CNC web punching production line, fiber laser cutting machine cutting, automated web CNC punching production line, automated robot welding, automated longitudinal beam submerged arc line.
Semi Trailer
Semi-trailer trucks are heavy-duty trucks with a gross vehicle weight of about 80,000 pounds and a payload capacity of 20,000 to 50,000 pounds. These trucks are also called eighteen-wheelers, articulated lorries, tractor-trailers, and much more
The advantages of semitrailers are as follows:
- Semi trailer and semi trailer parts adopts high-quality steel, advanced technology, strict production and manufacturing. The whole vehicle structure is with reasonable and reliable performance, simple operation and beautiful appearance.
- The frame is girder type structure whose longitudinal beam adopts straight or gooseneck type. The web height is from 400mm to 550mm with manganese plate welded and the longitudinal beam is automatically buried welded. Besides, the frame adopts shot blasting and the beam across the longitudinal beam, welding as the whole.
- The suspension adopts non-independent steel plate stamping rigid suspension, made of tandem leaf spring and suspension support; It has reasonable structure, strong rigidity and strength and is used to support load as well as cushion the blow.
Dimensions and types of semi-trailers
Standard Semi-trailer
A standard semi-trailer is one of the most common semi-trailers on the roads. They are also called tautliners in the industry. They consist of an open platform, covered on the sides with a flexible tarpaulin, which allows easy loading and unloading of goods from the side, back and top. There are also so-called curtainsider semi-trailers, where it is possible to move the side walls and roof. It is suitable for both general cargo and pallet transport.
Standard dimensions:
- Length: 13,6 m
- Width: 2,45 m – 2,5 m
- Height: 2,7 m – 3 m
- Capacity: About 24 tons
- Volume: 33-34 europallets (about 90 m³)
Mega Semi-trailer
A mega semi-trailer is similar to a standard one, but it has an increased internal height, which is usually about 3 meters. Thanks to the lowered floor, the mega semi-trailer offers more loading space, which allows for the transport of larger goods.
Standard dimensions:
- Length: 13,6 m
- Width: 2,5 m
- Height: 3 m
- Capacity: About 24 tons
- Volume: 33-34 europallets (about 100 m³)

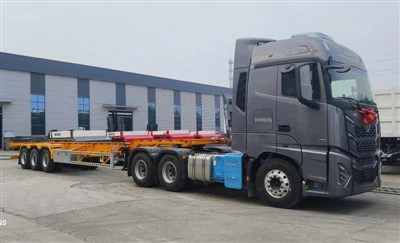

Container Semi-trailer
Container semi-trailers are designed to transport sea containers of standardized sizes (most often 20 and 40 ft). They make it possible to transport containers between different modes of transport, such as vessels, trains and trucks.
Standard dimensions:
- Trailer length for a 20-foot container: 7,3 m
- Trailer length for a 40-foot container: 12,2 m
- Width: 2,5 m
- Height: Depends on the height of the container (usually 2.6 m)
Refrigerated Semi-trailer
Refrigerated semi-trailers are specialized semi-trailers equipped with cooling systems that keep a constant temperature inside the trailer, which is crucial for transporting temperature-sensitive goods such as food, medicines, or chemicals.
Standard dimensions:
- Length: 13,3 m – 13,6 m
- Width: 2,45 m – 2,5 m
- Height: 2,6 m – 2,7 m
- Capacity: About 24 tons
- Volume: 33-34 europallets
Refrigerated semi-trailers are mainly used in the transport of food products such as meat, dairy products, fruit and vegetables, as well as medicines that require a controlled temperature.
Tipper Semi-trailers
Tipper semi-trailers are designed for transporting bulk materials such as sand, gravel, soil or grain. Thanks to the tipping mechanism, they enable quick unloading by tilting the semi-trailer.
Standard dimensions:
- Length: 8 m – 12 m
- Width: 2,45 m – 2,5 m
- Height: Depends on the type of tipper (usually 1-2 m)
- Capacity: Depends on the model (usually 24-30 tons)

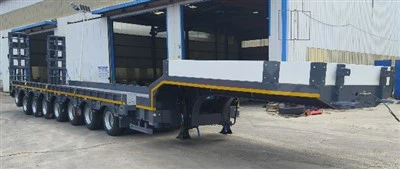

Low Loader Semi-trailer
Low loader semi-trailer has a lowered loading platform, which allows for the transport of large and heavy loads, such as construction machinery, vehicles or structural elements.
Standard dimensions:
- Length: 8 m – 12 m (with the possibility of extension)
- Width: 2,5 m – 3 m
- Height: 0,4 m – 0,9 m
- Capacity: Up to 60 tons (depending on the design)
Tanker Semi-trailer
Tanker semi-trailers are designed for transporting liquids, gases and bulk materials in a liquid form, such as fuels, chemicals, milk or other food products in liquid form. They are made of corrosion-resistant materials and are intended for the safe transport of hazardous substances.
Standard dimensions:
- Length: 10 m – 13,6 m
- Width: 2,5 m
- Volume: 30 000 – 45 000 liters
- Capacity: Depending on the material being transported (typically up to 27 tonnes)
Platform Semi-trailer
Platform semi-trailers, also known as open semi-trailers, have an open loading space, without side walls and roof. This kind of semi-trailers are designed to transport loads of non-standard dimensions, such as steel beams, pipes or industrial machinery.
Standard dimensions:
- Length: 12 m – 13,6 m
- Width: 2,5 m
- Capacity: About 24-30 tons
Decision-Making Table for Semi Trailer Selection
|
Selection Criteria |
28-Foot Semi Trailer |
40-Foot Semi Trailer |
|
Cargo Type |
Diverse, general goods |
Bulk commodities, large volume |
|
Transport Distance |
Short to medium distances |
Long distances |
|
Operating Environment |
Urban, confined spaces |
Rural, open roads, highways |
|
Cost Efficiency |
Higher in short trips |
Higher in long hauls |
|
Regulatory Compliance |
Check local regulations for size limits |
Ditto |
|
Flexibility |
Higher for varied cargo types |
Lower, more specific to large-scale hauls |
Packaging & Delivery
| Package Size |
| 12000.00cm * 11000.00cm * 11000.00cm |
| Package Gross Weight |
| 3000.000kg |
Full Semi Trailer Manufacturing Solutions
As one of the professional China trailer manufacturers, we offer full semi-trailer manufacturing solutions. We have many types of semi trailers for sale, providing solutions for almost any transportation business. According to customers’ requirements, we can also offer customized designs and configurations of semi-trailers. In addition, as one of the trustworthy semi trailer companies, we provide after-sales service to our customers to ensure the long-term performance and reliability of the semi-trailer.
We are focused on designing, manufacturing, and selling semi-trailers. Everything is done to provide our customers with high-quality and demand-compliant semi-trailer solutions.
