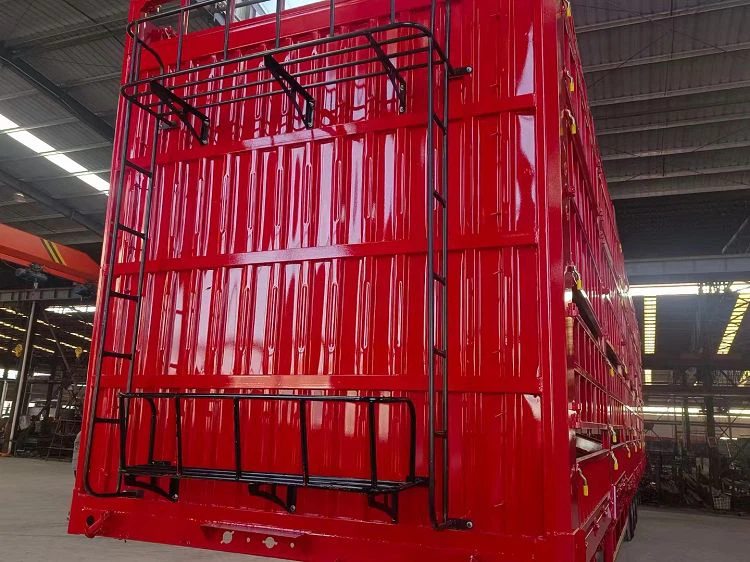

Frame Transport Semi-trailer
General Specifications of Frame Transport Semi-trailer
Frame Transport Semi-trailers are specialized heavy-duty freight trailers with an open rigid frame, designed for transporting oversized, ultra-heavy, or irregularly shaped cargo (e.g., construction machinery, steel beams, prefabricated components). Their specifications primarily vary by axle configuration (3-axle, 4-axle, 5-axle) and align with global heavy-transport standards (China's GB 1589-2016, EU's EC 1072/2009, US FMVSS 121). Below are industry-universal specifications tailored to heavy logistics needs:
1. Classification by Axle Configuration
Axle count directly determines load capacity and road compliance-core considerations for clients. Common configurations include:
| Axle Configuration | Core Load Capacity | Typical Application Scenarios |
|---|---|---|
| 3-axle Frame Transport Semi-trailer | 20–30 Tons | Medium-heavy cargo (small excavators, 12m steel profiles, light prefabricated parts) |
| 4-axle Frame Transport Semi-trailer | 30–45 Tons | Heavy cargo (medium excavators, 18m steel box girders, industrial boilers) |
| 5-axle Frame Transport Semi-trailer | 40–60 Tons | Ultra-heavy cargo (large cranes, 25m prefabricated piers, heavy-duty generators) |
2. Key Specifications by Axle Configuration
A. 3-axle Frame Transport Semi-trailer (Medium-Heavy Duty)
| Parameter Category | Typical Range | Key Notes |
|---|---|---|
| Dimensions | - Overall Length (trailer only): 13,000–18,000 mm- Overall Width: 2,500–3,000 mm (standard); 3,000–3,500 mm (oversized, requires permit)- Frame Platform Height: 1,000–1,300 mm (from ground)- Frame Platform Length: 12,000–17,000 mm | Standard width complies with most regional road limits; oversized width needs special transport approval (e.g., China's "oversized cargo permit"). |
| Load-bearing Performance | - Rated Payload: 20,000–30,000 kg (20–30 Tons)- Gross Combination Weight (GCW, with tractor): ≤49,000 kg (China/US); ≤44,000 kg (EU)- Axle Load: ≤13,000 kg/axle (single axle); ≤24,000 kg (tandem axles) | Axles adopt "2+1" or "1+2" layout; tandem axles distribute weight evenly to avoid road damage. |
| Structural Parameters | - Frame Material: Q690 High-strength Steel (tensile strength ≥690 MPa)- Crossbeam Spacing: 300–500 mm- Frame Thickness: 16–25 mm (main beam); 10–16 mm (crossbeam)- Cargo Fixing Points: 8–12 sets of bolt holes (Φ20–Φ30 mm) | Crossbeam spacing can be adjusted for narrow/wide cargo; bolt holes match steel cables or chains for securing heavy goods. |
| Chassis & Safety | - Suspension Type: Equalizer beam suspension (standard); Air suspension (optional for precision cargo)- Tire Specification: 11.00R20, 12.00R22.5 (6 tires total, radial tires)- Braking System: Air brakes + ABS (mandatory); EBS (optional for EU)- Kingpin: 90 mm standard (JOST/BPW, compatible with heavy tractors) | Air suspension reduces vibration by 30%, suitable for transporting precision machinery (e.g., laser cutting equipment). |
B. 4-axle Frame Transport Semi-trailer (Heavy Duty)
| Parameter Category | Typical Range | Key Notes |
|---|---|---|
| Dimensions | - Overall Length: 15,000–22,000 mm- Overall Width: 2,500–3,500 mm- Frame Platform Height: 1,000–1,400 mm- Frame Platform Length: 14,000–21,000 mm | Longer platform suits 18–20m cargo (e.g., steel box girders for bridges); optional "gooseneck-type frame" reduces front height by 150–200 mm. |
| Load-bearing Performance | - Rated Payload: 30,000–45,000 kg (30–45 Tons)- GCW: ≤55,000 kg (China, with special permit); ≤48,000 kg (EU)- Axle Load: ≤12,000 kg/axle (uniform distribution) | 4-axle layout (2+2 tandem axles) ensures axle load compliance; some models have 1–2 liftable axles to reduce tire wear when unloaded. |
| Structural Parameters | - Frame Material: Q690/Q960 Ultra-high Strength Steel- Crossbeam Spacing: 400–600 mm- Frame Thickness: 20–30 mm (main beam); 12–18 mm (crossbeam)- Cargo Fixing Points: 12–16 sets of bolt holes + 4–6 hook rings | Q960 steel enhances frame strength by 40% vs. Q690, suitable for short-term 10% overload (e.g., 49.5 Tons for 45-Ton rated payload). |
| Chassis & Safety | - Suspension Type: Air suspension (recommended); Equalizer beam suspension- Tire Specification: 12.00R22.5 (8 tires total)- Braking System: Air brakes + ABS + EBS (EU mandatory)- Anti-roll Bars: Front/rear (reduces tipping risk during turns) | Anti-roll bars critical for oversized cargo (e.g., 3.5m wide steel plates) to maintain stability at high speeds (≤80 km/h). |
C. 5-axle Frame Transport Semi-trailer (Ultra-Heavy Duty)
| Parameter Category | Typical Range | Key Notes |
|---|---|---|
| Dimensions | - Overall Length: 18,000–25,000 mm- Overall Width: 2,800–4,000 mm (oversized, requires permit)- Frame Platform Height: 1,100–1,500 mm- Frame Platform Length: 17,000–24,000 mm | Ultra-long platform for 22–25m cargo (e.g., prefabricated bridge piers); width over 3.5m needs cross-border transport approval (e.g., EU-US). |
| Load-bearing Performance | - Rated Payload: 40,000–60,000 kg (40–60 Tons)- GCW: ≤62,000 kg (China, with ultra-heavy permit); ≤52,000 kg (EU)- Axle Load: ≤12,000 kg/axle | 5-axle layout (3+2 tandem axles) requires professional weight distribution calculation to comply with regional axle load limits. |
| Structural Parameters | - Frame Material: Q960 Ultra-high Strength Steel + Reinforced Crossbeams- Crossbeam Spacing: 350–500 mm- Frame Thickness: 25–35 mm (main beam); 15–20 mm (crossbeam)- Cargo Fixing Points: 16–20 sets of bolt holes + 8–10 hook rings | Reinforced crossbeams (double-layer design) handle point loads (e.g., 60-Ton crane with 2 support points) without frame deformation. |
| Chassis & Safety | - Suspension Type: Heavy-duty air suspension (max load ≥15 Tons/axle)- Tire Specification: 12.00R22.5 (10 tires total, load index ≥152)- Braking System: Air brakes + ABS + EBS + ASR (Anti-slip Regulation)- Tire Pressure Monitoring System (TPMS): Mandatory | ASR prevents tire slip on wet roads; TPMS alerts for underinflation (critical for heavy loads to avoid tire blowouts). |
3. Universal Specifications & Customization Options
A. Universal Safety & Durability Features
Corrosion Resistance: Frame undergoes shot blasting (rust removal grade Sa2.5) + epoxy primer + topcoat, salt spray resistance ≥1,000 hours (suitable for coastal/inland wet areas).
Visibility & Warning: ECE R67-compliant reflective strips (full-body coverage); LED warning lights (for oversized cargo, mandatory in EU/US).
Emergency Safety: Emergency stop valve (cuts brake air supply in 0.3 seconds); spare tire carrier (2–3 spare tires for long-haul transport).
B. Customization Options (Trade Key Selling Points)
Cargo-specific Upgrades:
Tire 限位槽 (Tire slots) for construction machinery (prevents sliding).
Hydraulic lifting platform (5–10 Tons capacity) for low-height cargo (e.g., industrial boilers).
Gooseneck-type frame (reduces front height, improves driving safety for long cargo).
Regional Adaptations:
Cold regions: Axle heating systems (prevents brake freezing at -30°C).
High-altitude regions: Enhanced air filters (reduces engine dust intake in plateaus).
Coastal regions: Stainless steel components (hooks, bolts) to resist saltwater corrosion.
Intelligent Add-ons:
GPS tracking (real-time cargo location + temperature/humidity monitoring).
Remote fault diagnosis (alerts for suspension/brake issues via mobile app).
These specifications balance heavy-load capacity, regulatory compliance, and flexibility-making Frame Transport Semi-trailers ideal for global construction, energy, and heavy-industry logistics needs.
Product Introduction
The Frame Transport Semi-trailer is a specialized heavy-duty freight solution engineered for transporting oversized, ultra-heavy, or irregularly shaped cargo-critical for construction, energy, and heavy-industry sectors globally. Its core value lies in **breaking size and weight limitations of traditional enclosed trailers**: with an open rigid frame design, it accommodates cargo up to 25 meters long, 4 meters wide, and 60 tons heavy (e.g., large excavators, steel box girders, prefabricated bridge piers). Available in 3-axle (20–30 tons), 4-axle (30–45 tons), and 5-axle (40–60 tons) configurations, it complies with global standards (China's GB 1589-2016, EU's EC 1072/2009, US FMVSS 121) and supports tailored upgrades for cargo-specific needs. Whether serving infrastructure projects in Southeast Asia, energy facilities in the Middle East, or construction sites in Europe, this semi-trailer delivers reliable, compliant, and efficient heavy-transport performance-making it a core asset for global trade clients in heavy logistics.
II. Product Details
1. Frame Transport Semi-trailer: Axle Configurations for Targeted Load Requirements
The Frame Transport Semi-trailer offers three axle configurations to match diverse cargo weights and regional road regulations, ensuring optimal efficiency. The 3-axle model (20–30 tons payload) features a 12–17 meter frame platform and 2.5–3.0 meter standard width, ideal for medium-heavy cargo like small excavators (15–20 tons), 12-meter steel profiles, and light prefabricated components-suited for short-to-medium-haul transport in urban construction zones (e.g., China's Yangtze River Delta, India's Delhi-NCR). The 4-axle model (30–45 tons payload) extends the platform to 14–21 meters and supports 2.5–3.5 meter width, designed for heavy cargo such as medium excavators (25–35 tons), 18-meter steel box girders, and industrial boilers-common in cross-provincial infrastructure projects (e.g., EU's highway expansion, US intermodal transport). The 5-axle model (40–60 tons payload) boasts an 17–24 meter ultra-long platform and 2.8–4.0 meter oversized width (requiring special permits), tailored for ultra-heavy cargo like large cranes (50–60 tons), 25-meter prefabricated piers, and heavy-duty generators-critical for energy projects (e.g., Middle Eastern solar farms, African hydropower plants).
2. Frame Transport Semi-trailer: High-Strength Structure for Ultra-Heavy Loads
The Frame Transport Semi-trailer's rigid frame structure is engineered for maximum load-bearing capacity and durability, addressing the core concern of heavy-cargo safety. Its main frame uses Q690/Q960 ultra-high-strength steel (tensile strength ≥690 MPa for Q690, ≥960 MPa for Q960), with main beam thickness of 16–35 mm and crossbeam thickness of 10–20 mm-enabling it to withstand short-term 10% overload (e.g., 49.5 tons for a 45-ton rated model) without deformation. Crossbeam spacing is customizable (300–600 mm): narrower spacing (300–400 mm) suits concentrated loads (e.g., industrial boilers with small contact areas), while wider spacing (500–600 mm) optimizes weight distribution for long cargo (e.g., steel beams). The frame undergoes shot blasting (rust removal grade Sa2.5) + epoxy primer + topcoat treatment, achieving salt spray resistance ≥1,000 hours-ideal for coastal projects (e.g., Southeast Asian port expansions, US Gulf Coast refineries). Additionally, 8–20 sets of bolt holes (Φ20–Φ30 mm) and 4–10 hook rings are pre-installed for securing cargo with steel cables or chains, eliminating the need for on-site modification.
3. Frame Transport Semi-trailer: Cargo-Specific Customization for Versatility
The Frame Transport Semi-trailer offers extensive customizations to adapt to unique cargo characteristics, enhancing its applicability across industries. For construction machinery transport (excavators, loaders), it adds tire 限位槽 (tire slots, 200–300 mm wide) to prevent equipment sliding during turns and hydraulic ramps (load capacity ≥10 tons) for easy loading of low-ground-clearance machinery. For long/overwidth cargo (steel box girders, prefabricated piers), a gooseneck-type frame is available-lowering the front platform height by 150–200 mm to improve driving stability and comply with height limits (≤4.5 meters in most regions). For precision equipment transport (laser cutters, medical imaging machines), heavy-duty air suspension (max load ≥15 tons/axle) replaces standard mechanical suspension, reducing vibration by 30% to protect sensitive components. Regional adaptations include: cold regions (axle heating systems for -30°C startup), high-altitude areas (enhanced air filters for low-oxygen environments), and coastal zones (stainless steel hooks/bolts to resist saltwater corrosion)-ensuring performance in diverse climates.
4. Frame Transport Semi-trailer: Global Safety & Compliance for Market Access
The Frame Transport Semi-trailer integrates robust safety features and multi-region certifications to ensure legal operation and cargo security. Its braking system meets global standards: all models include air brakes + ABS (Anti-lock Braking System) as standard, while 4/5-axle models add EBS (Electronic Braking System) (mandatory in the EU) and ASR (Anti-slip Regulation) to shorten stopping distances by 20% on wet roads and prevent tire slip during heavy-load acceleration. Visibility enhancements include full-body ECE R67-compliant reflective strips (visible at 200+ meters at night) and LED warning lights (for oversized cargo, required in the EU/US)-critical for cross-border transport (e.g., China-Mongolia, EU-US routes). Compliance-wise, it holds certifications such as China's CCC, EU's CE (ECE R10/R74), and US DOT approval-eligible for heavy-transport subsidies in regions like China's "Infrastructure Logistics Support Program" and the EU's "Green Cargo Initiative." For oversized/ultra-heavy cargo, the product also includes documentation support for special transport permits (e.g., China's "Oversized Cargo Transport License," EU's "Special Convoy Authorization").
5. Frame Transport Semi-trailer: Tractor Compatibility & Stability Optimization
The Frame Transport Semi-trailer is designed for seamless compatibility with mainstream heavy tractors and enhanced stability during heavy-load transit. It uses a 90 mm standard kingpin (JOST/BPW brand) compatible with tractors from major manufacturers (Volvo, Sinotruk, Freightliner) with 300–500 HP engines-ensuring sufficient power for uphill climbs (15°+ grades) common in mountainous regions (e.g., the Alps, China's Sichuan Basin). Tire specifications are tailored to axle load: 3-axle models use 11.00R22.5 radial tires (load index ≥148), while 4/5-axle models upgrade to 12.00R22.5 tires (load index ≥152)-all with wear resistance ≥120,000 km for long-haul reliability. Stability features include front/rear anti-roll bars (reducing tipping risk by 40% during turns) and a Tire Pressure Monitoring System (TPMS) (mandatory on 5-axle models) that alerts for underinflation-preventing tire blowouts caused by heavy loads. For empty return trips, 4/5-axle models offer 1–2 liftable axles, reducing tire contact with the road by 20–30% to lower wear and fuel consumption.
6. Frame Transport Semi-trailer: Durability & After-Sales Support for Long-Term Value
The Frame Transport Semi-trailer prioritizes long-term durability and accessible after-sales service to lower clients' total cost of ownership (TCO). Key components use industry-leading brands: BPW/Fuwa axles (service life ≥800,000 km), Continental radial tires (resisting punctures in rough terrain), and WABCO braking systems (reducing maintenance frequency by 30%). The frame's modular design simplifies repairs-damaged crossbeams can be replaced individually without full frame replacement, cutting repair costs by 50%. After-sales support includes a 2-year warranty on core components (frame, axles, braking system) and optional 5-year extended warranties, plus a global service network with 30+ centers (Germany, China, Brazil, South Africa) for on-site maintenance. For trade clients, we also provide spare parts kits (common wear items like brake pads, tires) and technical training for local operators-ensuring minimal downtime even in remote regions (e.g., African mining sites, Southeast Asian rural infrastructure projects).
This English product introduction fully covers the Frame Transport Semi-trailer's core selling points (oversized cargo adaptability, heavy-load safety, global compliance) and trade-critical details (customization options, after-sales support), making it ready for direct platform listing. If you need to add region-specific compliance details (e.g., Middle East SASO, Australia ADR standards), emphasize a specific axle model (3-axle/5-axle), or adjust the tone to target niche clients (e.g., renewable energy project contractors, heavy machinery dealers), feel free to let me know for further optimization.
